- Maximum hollow design,ultralight weight,fast heat dissipation. Unique stator design, 24N28P configuration
- standardized mounting hole position,compatibility with all kinds of rack.
- Durable EZO imported bearing, more stable rotation, more resistant Using high performance arc magnet, the performance is improved by 5%
- MAD 5008 EEE motor is the single rotor load of 600-2000g, with 16-17 "carbon propeller. Support Li-ion 6S-12S. The largest thrust of single rotor is up to 4072g.the weight of motor is 131g.
- Maximum Power 515W Maximum Thrust 3403g Maximum Torque 1.03N*m Recommend ESC AMPX 40A PRO ESC Recommend Propeller FLUXER 16'-17' Propeller Recommendation 900g-1500g(16'-17)

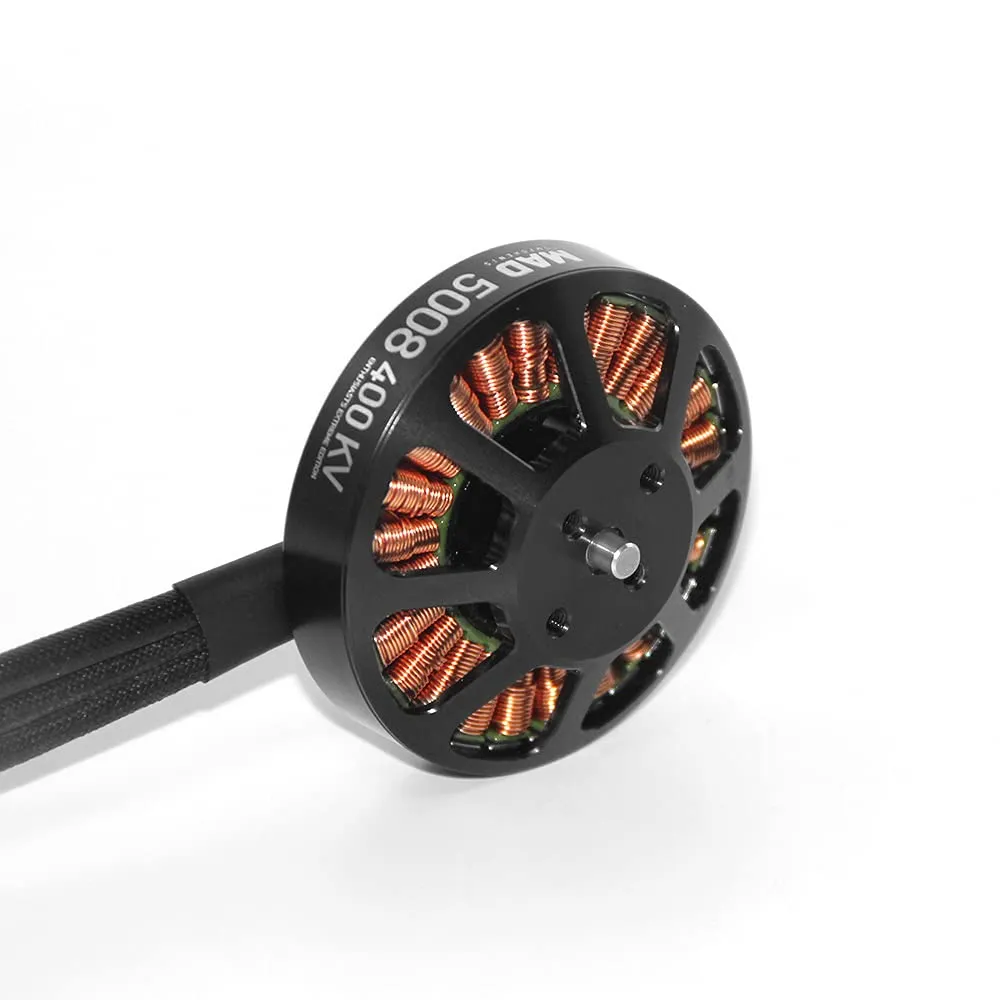

MAD 5008 EEE brushless motor is designed to carry payload of 600-2000g per motor, with 16-17 inch propeller. Support Li-ion 6S-. The largest thrust of single rotor is up to 4072g.the weight of motor is 131g. EEE reduction version design,tominimize weight improve sysem efficiency and increase flighttime.MAD 50 series is the multi - rotor aircraft brushless motor for professional aerial photography and industry applications.Used for surveying, mapping, patrol inspection and aerial photography. Providing power support for all kinds of industry applications with great thrust, high efficiency, light weight and excellent reliability.
Specifications
Motor Model MAD 5008 EEE
Configuration 24N28P
Srator imported material anti-corroslve surface
Motor Dimensions 56X25.9mm
Vamished Wire Degree 120℃ high temperature
Magnet Degree 180℃ high temperature
Degree of Protection IP14
KV 300KV
Rated Voltage 6-8S
No Load Current 0.99A/20V
Internal Resistance 80mΩ
Motor Weight 131g
Product Boxed Weight 264g
Maximum Current 21.5A
Motor Take-off Weight 6S-18'/4.5 axis--Quadcopter,6.5 axis--Hexcopter,8.5 axis--Octcopter
Wire 150mm
Centrifugal Heat Dissipation active heat dissipation (open body design)
Rotor Balanced ≤5Mg
Wire Pressure Test 500V AC
Propeller Mounting Holes M3 Ø12*2/ M3 Ø18*2
Motor Mounting M3 Ø25*4/M3 Ø30*4
Box Size 110mmX110mmX50mm
Maximum Power 515W
Maximum Thrust 3403g
Maximum Torque 1.03N*m
Recommend ESC AMPX 40A PRO ESC
Recommend Propeller FLUXER 15'-20'Propeller Recommendation 900g-1500g(15'-20')
- Package Dimensions : 4.33 x 4.33 x 1.97 inches; 4.59 ounces
- Date First Available : December 18, 2019
- Manufacturer : jiangxi MAD motor components co.LTD
- Country of Origin : China
