Product Overview:

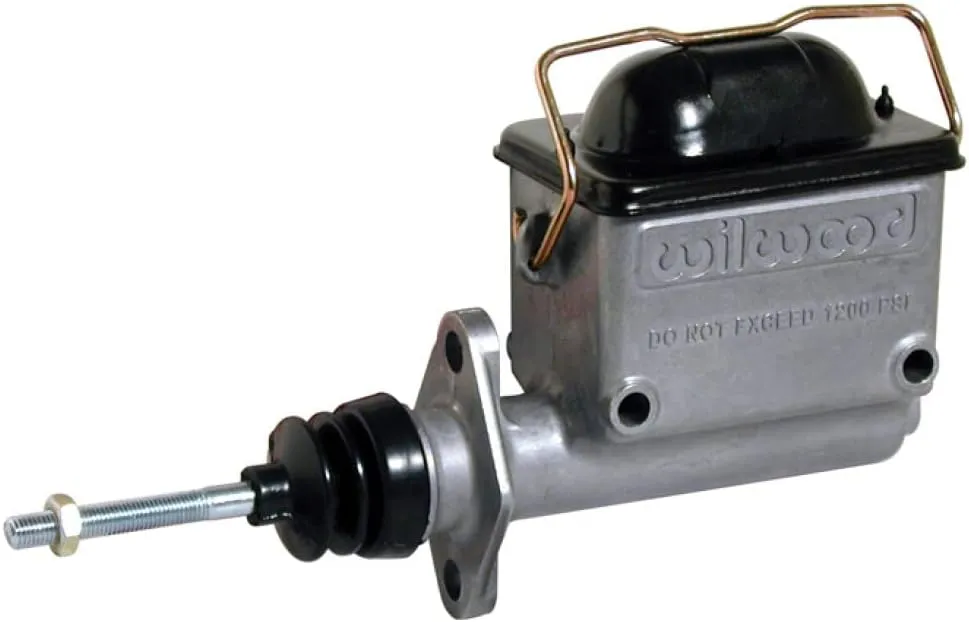

- Wil-Wood High-Volume Aluminum Master Feature High Pressure Die-Cast Bodies From High-Grade Aluminum. Wil-Wood. High-Volume Master Cylinders Have The Highest Fluid Capacity Of Any Integral Reservoir Design. With A Total Capacity Of 8.2 Ounces, There Is At Least 26Percent More Fluid Volume Than Other Brands. . With 1-7/16" Of Piston Travel, It Offers Extra Margin When Used With Large Piston Calipers. Heavy Duty Internal Springs Provide Fast Retraction. Formed Steel Lids With Bellows Type Gaskets Keep The Moisture Out. Wil-Wood Master Cylinders Use Common Dimensions For Flange Or Side Mounting And A 1/8-27 Npt Outlet Port.

Product Info:
- Wil-Wood High Volume Aluminum Master Cylinder - 1In Bore
- Type: Single Outlet
- Outlets: 1
- Material: Aluminum / Steel
- Finish: Bare

Manufacturer Part Number:
- Part Number: 260-6766

Specifications:
-Master Cylinder Dimensions
Bore Size: 1.00"
Area (In²): 0.780
Stroke: 1.43
Volume (Cu In): 1.11

-Master Cylinder Description
Type: Single Outlet
Outlets: 1
Material: Aluminum / Steel
Finish: Bare

-Reservoir
Res Type: Integral
Res Size (Oz): 8.2
Res Size(Cu In): 14.80
